Proper filter installation is an important part of a ventilation system
In supply ventilation systems for protective structures, air filtration efficiency depends not only on the characteristics of the filter elements. Proper installation, secure fixation, and the ability to replace filters when required for maintenance are also important.
For installation of FyaR cell-type air filters, CCK TM offers the K-RFM mounting frame.

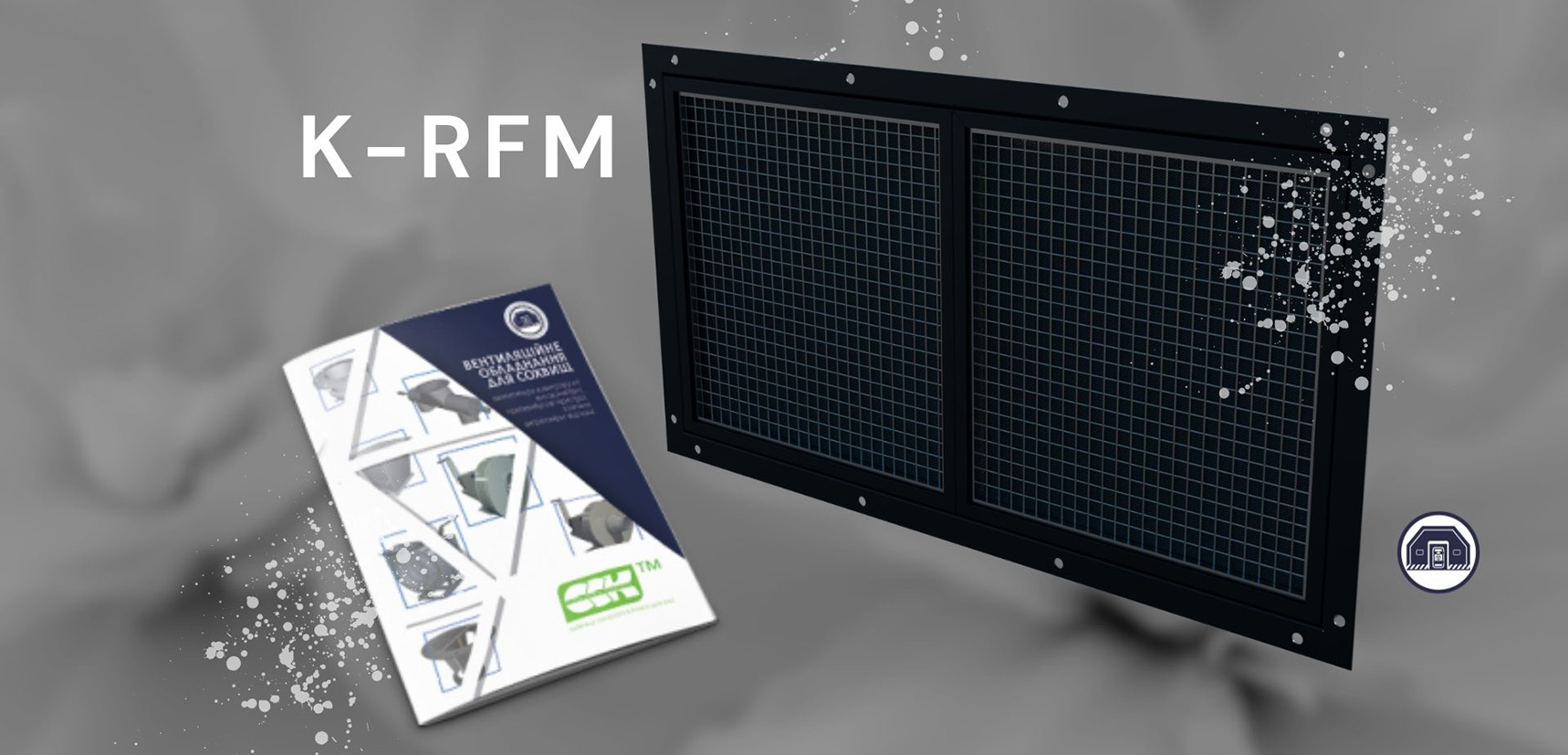

The frame is designed for installing filters of the corresponding size as part of supply ventilation systems for protective structures. Its design allows the filter cells to be arranged in a single plane, preferably perpendicular to the direction of airflow.
What is the K-RFM mounting frame used for?
K-RFM provides secure installation and fixation of FyaR cell-type filters in a ventilation chamber.
Each filter position is equipped with spring-loaded retaining elements. They securely hold the filter in position and prevent displacement during ventilation system operation.
At the same time, the design allows the filter element to be removed and replaced quickly without special tools, simplifying routine system maintenance.
Key advantages of K-RFM
The mounting frame provides:
- secure fixation of FyaR cell-type filters;
- organized filter installation inside ventilation chambers;
- prevention of filter displacement during operation;
- quick filter removal and replacement;
- easier ventilation system maintenance;
- adaptation of the frame design to the requirements of a specific project.
K-RFM is available in different configurations depending on the number and dimensions of the installed filters. Other frame dimensions can be manufactured upon agreement with the manufacturer.
Construction and installation
K-RFM is a rigid welded rectangular frame made of carbon steel with a protective and decorative powder coating.
The mounting frame is supplied together with FyaR filters of the corresponding size. The number of filters depends on the specific frame configuration.
K-RFM is installed into the structural openings of ventilation chambers using a continuous sealing gasket and secured with anchor bolts.
The operating temperature range for the mounting frame is −20 °C to +40 °C. For FyaRB filters, the specified temperature range is −40 °C to +40 °C.
Why is secure filter fixation important?
The filter element should remain securely positioned throughout the entire operating period. Reliable fixation helps maintain the intended position of the filter, while the frame design provides convenient access for maintenance.
Therefore, a mounting frame is not simply an auxiliary component but part of an organized supply-air filtration system.
K-RFM for protective structure ventilation systems — key facts
What is K-RFM?
K-RFM is a mounting frame designed for installing FyaR cell-type air filters in supply ventilation systems of protective structures.
What is K-RFM used for?
The frame provides secure installation and fixation of filters and simplifies their removal and replacement during maintenance.
Which filters are installed in K-RFM?
The mounting frame is designed for FyaR cell-type air filters of the corresponding size.
Can K-RFM be manufactured in other sizes?
Yes. Other frame dimensions can be manufactured upon agreement with the manufacturer.
CCK TM — solutions for protective structure ventilation systems
K-RFM is designed to provide practical filter installation in supply ventilation systems of protective structures. Its rigid construction, secure fixing elements, and tool-free filter replacement make the frame convenient for ventilation system design, installation, and maintenance.
CCK TM manufactures ventilation equipment and components for engineering systems of various applications.
