Air handling unit with built-in automation

The VRS-550 air handling unit casing consists of closed aluminum profiles connected by strong corner fasteners made of aluminum alloy or high-strength fiberglass-reinforced special plastic, combined with three-layer panels filled with dense mineral wool. The panel thickness is 50 mm, and the walls are made from galvanized sheet with a thickness of 0.7 mm.

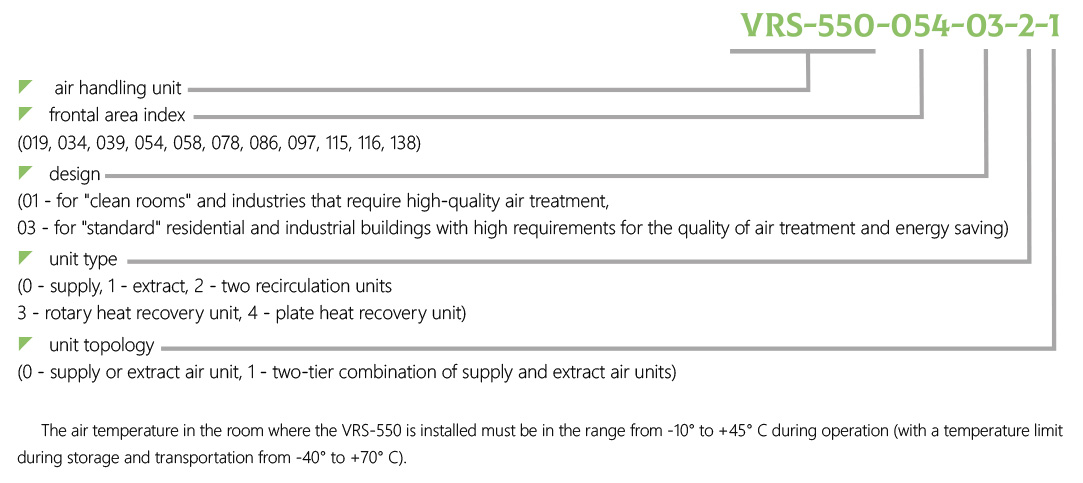

Design versions:

• Version 01: powder-coated external and internal panels (standard).

• Version 02: external panels powder-coated, internal panels made of stainless steel.

• Version 03: external and internal panels without additional coating.

When designing VRS-550 air conditioners with built-in automation, the block-modular construction allows both standard configuration and customized development based on individual project requirements. The combination of block-modular air handling units and modular standardized automation system ensures high design flexibility, minimal labor, and reduced commissioning time.
